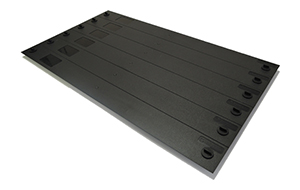

EZIBLANK® - Universal 6RU Blanking Panels
Applications
Universal EZIBLANK® Blanking Panels have been updated with a new latch design — L-shaped clips on the left-hand side secure the panel onto the rail, while a specially designed knob latch on the right, made of medical grade thermoplastic elastomer rubber, twists to lock it in place. Molded positioning studs assist with the alignment of the panel so that it can be installed easily onto most 19" and 23" server racks regardless of the type of mounting hole.
The uniquely adjustable panels can be fitted to every size of rack unit, from one to six. The knob latch allows the panels to be installed or removed in seconds without the need for screws or tools.
Features
- Universal Tool-Free Mounting designed for ease-of-use and rapid deployment.
- UL-94* compliant flame retardant ABS plastic that meets the most demanding requirement.
- Patented Snappable Design offers greater flexibility when applying on different sizes of RU height.
- Scratch Resistance Textured Surface that offers both aesthetic appearance and industrial durability.
- Recyclable Lightweight Plastic that is both durable and environmentally friendly.
*: ABS plastic panel complies with UL94-V0
rating; TER knob latch complies with UL94-HB
Specifications
EZIBLANK® panels are manufactured to the highest international standards.
- Dimensions: 270 x 483 x 19 (6RU Panel, in mm)
- Weight: 400g per panel or 4kg per pack of 10.
- Packaging: 500 x 300 x 130 (mm), 4.1kg
- Panel is impact resistant, water resistant and anti-static ABS plastic.
- Knob latch is Ethylene Propylene Thermoplastic Elastomer (EPTR)
- Meets EIA-310-D standards
- Non toxic and resistant to chemicals
- UL-94 VO rated, Flame retardant ABS plastic
- 100% recyclable and reusable

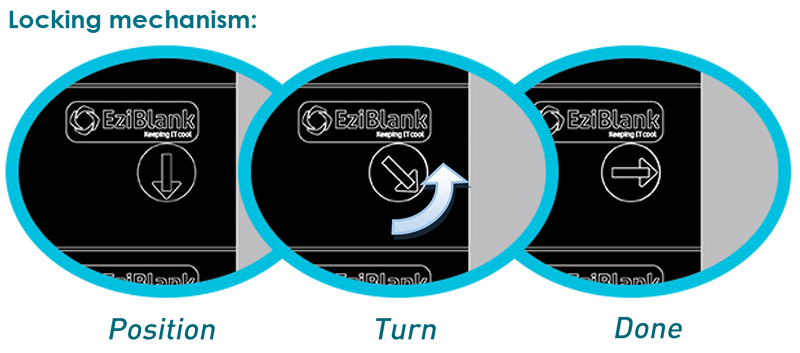

Installation
Simple to install with locking mechanism. No screws or tools needed.
